| Frame: | Carbon Main Frame & SST / Alloy CST-Link, Virtual 4 link kinematic VLK, 29x2.6 / Boost 148x12mm UDH, 160mm travel / Bosch Gen4 / Integr. removable Battery, 1.8" Headtube, Central Kickstand Mount, Integr. Cable |
| Fork: | FOX 38 FIT Factory Grip 2 Air / Kashima, HSC - LSC - HSR- LSR adjustable / QR Axle 15x110mm, 44mm offset / tapered steerer, 170mm travel |
| Rear Shock: | FOX NUDE T eRIDE EVOL Kashima / Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, custom large air volume / DPS / Reb. Adj., Travel 160-115-Lockout / 205X60mm |
| Headset: | Acros / 1.8", ZS66 OD74 / integr. Cable |
| Bars: | Syncros Hixon iC SL / 15mm Rise / integrated cockpit, S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension, 7° backsweep / 6° upsweep |
| Front Brake: | Shimano XT / BR-M8120 4 Piston. F/R: Shimano RT-MT800 CL 203 mm |
| Rear Brake: | Shimano XT / BR-M8120 4 Piston. F/R: Shimano RT-MT800 CL 203 mm |
| Brake Lever: | Shimano XT |
| Rear Mech: | SRAM X01 Eagle AXS / 12 Speed, Wireless Electronic Shift System |
| Shifters: | SRAM GX Eagle AXS Rocker Controller |
| Speed: | 12 |
| Rims: | Syncros Revelstoke-E 1.5 CL, F: 15x110mm, R: 12x148mm Boost, 30mm Tubeless ready rim 28H, Syncros Axle w/Removable Lever with Tool |
| Front Hub: | 15x110mm |
| Rear Hub: | 12x148mm Boost |
| Front Tyre: | F: Maxxis Assegai 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra, R: Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| Rear Tyre: | F: Maxxis Assegai 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra, R: Maxxis Dissector 29x2.6", 120TPI Foldable Bead, EXO+ / TR Tubeless ready, 3C Maxx Terra |
| Seat Post: | FOX Transfer Factory Dropper Post Kashima, 31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm |
| Saddle: | Syncros Tofino 1.5 Regular, Titanium rails |
| Chainset: | SRAM X1 1000 / 165mm |
| Bottom Bracket: | Integrated |
| Chain: | SRAM CN NX Eagle |
| Cassette: | SRAM XG1275 / 10-52 T |
| Pedals: | Resin latform |
| Battery (Wh): | PowerTube 750Wh |
| Motor: | Bosch Performance CX-R, EU: 25kmh / INT: 20mph |
| User Interface: | Bosch LED Remote & Kiox 300 |
What are the delivery costs?
We offer Free UK Mainland Delivery on all orders over £20. Products shipped to outlying UK regions are excluded from free shipping.
Standard delivery is normally 2 - 5 working days.
Please view our delivery page for full information on UK and international delivery costs.

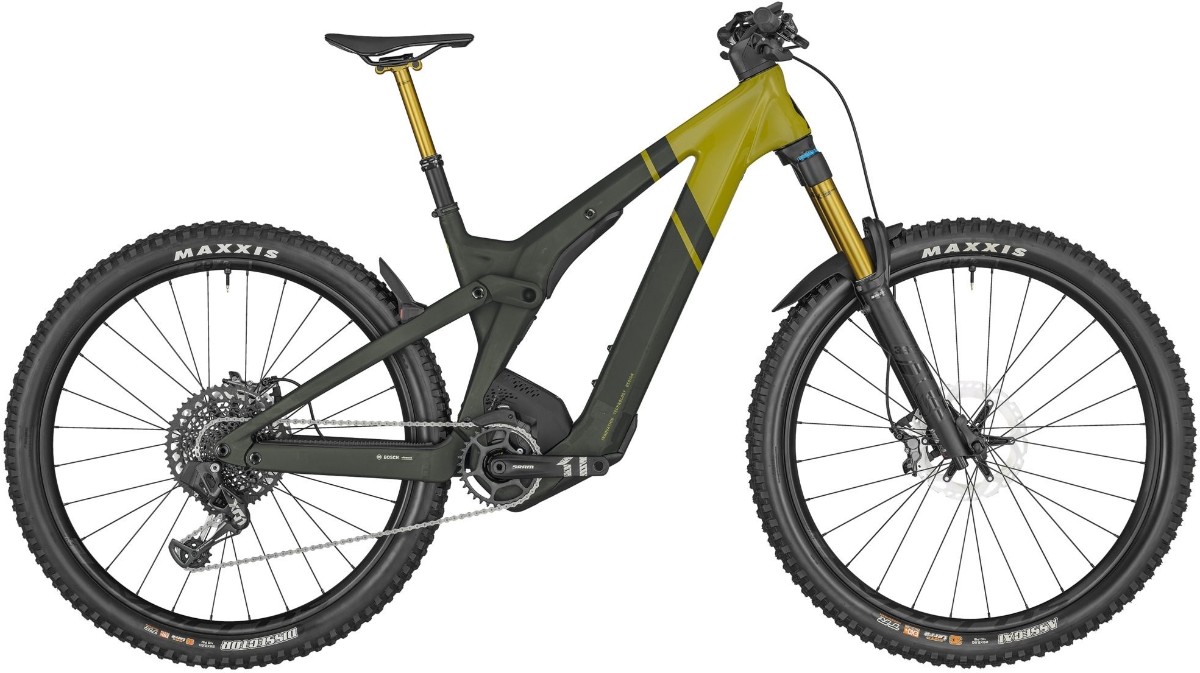

ST for Super Trail, the Patron ST eRIDE 900 Tuned is based on the classic Patron platform but optimized for the ones who like spending more time in the air and in steeper terrain.
ST for Super Trail, the Patron ST eRIDE 900 Tuned is based on the classic Patron platform but optimized for the ones who like spending more time in the air and in steeper terrain. No Twinloc on the fork, more travel with 170 front and beefier tires. Boss the trails! Please note that bike specifications are subject to change without prior notice
Occasionally, without notice, manufacturers change product design and/or specifications.
